Integration of a magnetic signature process into the SALOME platform

Context

To meet its needs, NAVAL GROUP approached PHIMECA to develop a module based on the ECHOphy module developed by PHIMECA in the SALOME platform.

Results

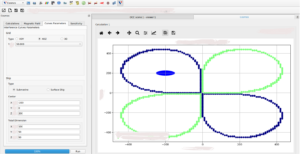

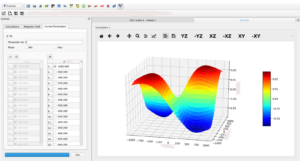

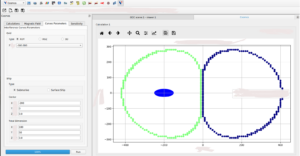

Together with Naval Group, Phimeca has developed a business tool in SALOME to perform the following tasks:

• File management in Salomé, including the integration of DXF input and output files;
• Import/export of geometry and geometry checks;
• Import/export of materials from the materials base;
• Mesh management;
• Post-processing of results.
